Summary

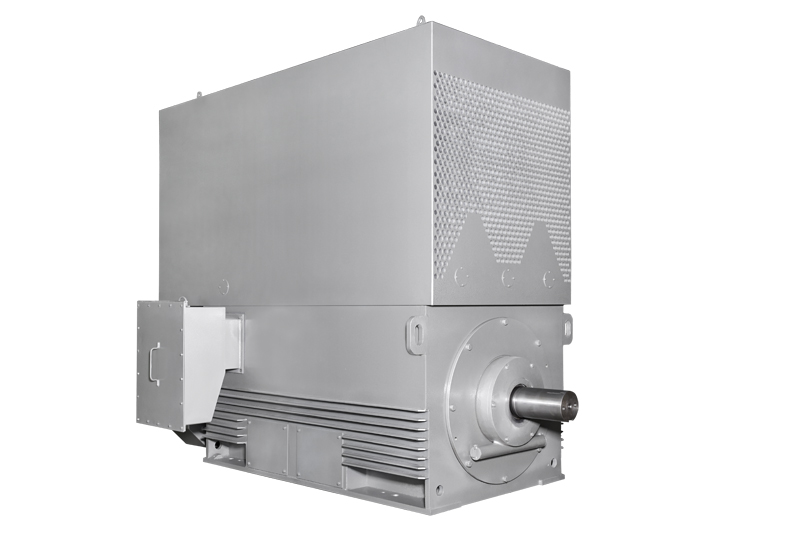

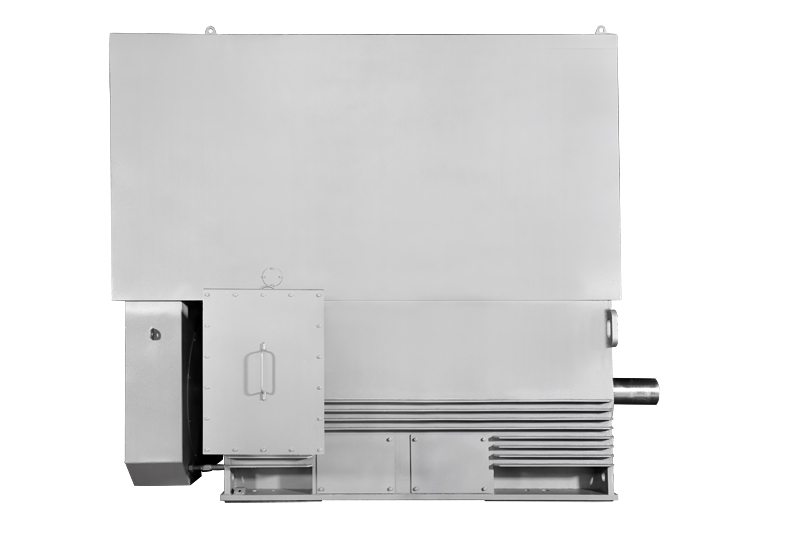

The 1MC0 series high-efficiency high-voltage three-phase asynchronous motor is a new type of modular high-voltage motor product produced by Siemens Large Special Motors (Shanxi) Co., Ltd. (Changzhi, China), which takes into account both universality and special needs. Its efficiency reaches the China Energy Efficiency Class II (GB30254-2013) or the subsidy standard for high-voltage and high-efficiency motors in energy-saving and benefiting people projects. It is characterized by excellent quality, reliable operation, and compact structure. It is a fan, pump, compressor Ideal drive motor for various mechanical equipment such as winches, centrifuges, crushers, and rubber and plastic machinery.

Basic technical specifications:

Power (KW): 220-2800

Number of poles: 2, 4, 6, 8 poles

Center height: 355-560

Voltage level: 10kV/50Hz

Cooling method: IC611, IC81W, IC01

Protection grade: IP54 (IC611, IC81W); IP23（IC01）

Shell material: steel plate welding

Installation method: IM B3

Efficiency: High efficiency high-voltage motor level of energy-saving and benefiting people project

Bearing: local well-known brand (foreign brand optional)

Applicable operating conditions:

Rated voltage: 10kV ± 5%

Rated frequency: 50Hz ± 2%

Ambient temperature: - 15 ℃~40 ℃

Altitude: not exceeding 1000m

Working system: continuous working system S1
