Motor type: squirrel cage type

Applicable standards: GB/IEC

Voltage: Low voltage

Full dense/semi dense: Full dense

Installation method: horizontal/vertical

Product model:

Horizontal type - [EVEV (F # 80M-355C), EVEF (F # 71-250M), AEDL (F # 280S-315L), AELC (F # 315A-400A), EVMB (F # 63M-315L)]

Vertical type - [EVVV (F # 80M-355C), EVVF (F # 71-250M), AEDV (F # 280S-315L), EVMV (F # 63M-315L)]

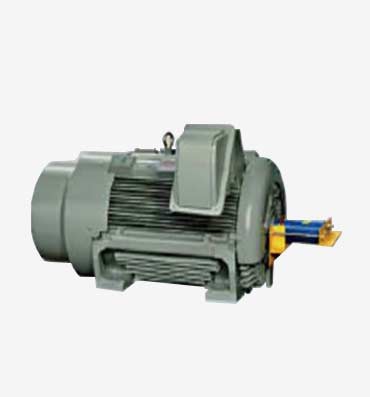

IC416 forced cooling frequency conversion (V series&F series)

Applicable conditions

1. Power supply conditions: voltage fluctuation rate within ± 10%, frequency fluctuation rate within ± 5%, comprehensive voltage and frequency fluctuation rate within ± 10%, and frequency fluctuation rate not exceeding ± 5%

2. Continuous working system S1 (SF1.0), frequency conversion range: 5 Hz to 50 Hz, decreasing torque or constant torque, and above 50 Hz, constant power, but not exceeding the limit speed (see the catalog for specific limit speed values)

3. Place of use: indoor, non hazardous gas environment

4. Ambient temperature: - 15~40 ℃

5. Ambient humidity: Relative humidity below 90% (but not condensing)

6. Altitude: below 1000m above sea level

7. Transmission mode: belt pulley transmission, but 2-pole 45kW and above, 4, 6&8P F # 280 and above use coupling transmission

8. Requirements: When installing a coupling or pulley, use the shaft end tap to press it in. It is prohibited to hit the shaft end with external force for installation

Motor characteristics

1. Special frequency conversion enameled wire, VPI vacuum immersion

2. High efficiency separated cooling fan, small size, low noise, high protection level (IP55), wide applicable voltage/frequency range

3. Using a vibration resistant, impact resistant, high-precision encoder, precise control, and sensitive signal response

4. Equipped with thermal protection element PTC to prevent the motor from burning due to excessive temperature

5. Installation dimensions and tolerances comply with IEC international uniform specifications, easy maintenance, and high interchangeability

Product model: EVEV/EVVV

technical parameter

Power: 0.55kW~400kW

Number of poles: 2P~8P

Voltage: 380V or other voltages

Frequency: 50Hz or 60Hz

Frame No.: 80M~355C

Protection level: IP55

Insulation class: F

Product model: EVEF/EVVF

technical parameter

Power: 0.37kW~90kW

Number of poles: 2P~8P

Voltage: 380V or other voltages

Frequency: 50Hz or 60Hz

Box No.: 71~250M

Protection level: IP55

Insulation class: F

Product model: AEDL/AEDV

technical parameter

Power: 55kW~200kW

Number of poles: 2P~6P

Voltage: 380V or other voltages

Frequency: 50Hz or 60Hz

Box No.: 280S~315L

Protection level: IP55

Insulation class: F

Product model: AELC

technical parameter

Power: 185kW~375kW

Number of poles: 2P~6P

Voltage: 380V or other voltages

Frequency: 50Hz or 60Hz

Box No.: 315A~400A

Protection level: IP55

Insulation class: F

Product model: EVMB/EVMV

technical parameter

Power: 0.12kW~200kW

Number of poles: 2P~6P

Voltage: 380V or other voltages

Frequency: 50Hz or 60Hz

Frame No.: 63M~315L

Protection level: IP55

Insulation class: F
